This is an Elegant Glass Surface Underfloor Heating Thermostat. It has a elegant,sleeker design with a beautiful LCD screen ensuring an excellent user experience of temperature control.
This 7 days programmable thermostat is a thermostat which is designed to adjust the temperature according to a series of programmed settings that take effect at different times of the day. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached. Digital floor heated thermostat allows users to select different temperatures in your home at different times of the day to meet particular user’s needs and preferences. But thermostat to a higher temperature will not make the room heat up any faster. How quickly the room heats up depends on the design and size of the heating system. Similarly reducing the temperature setting does not affect how quickly the room cools down.

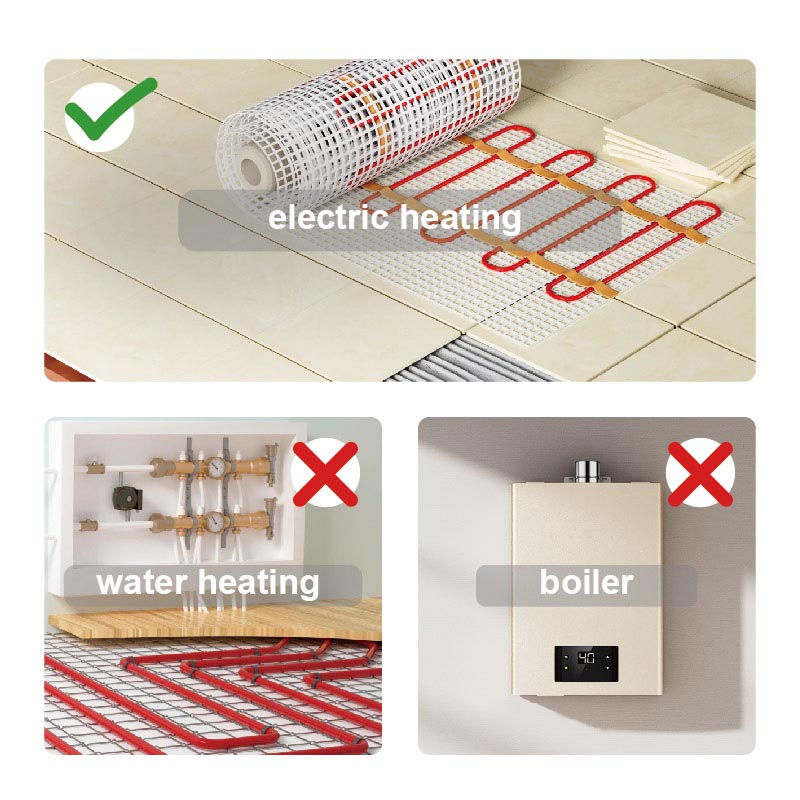

Programmable thermostats are also known as setback thermostats or clock thermostats. It is designed for electric floor heating system.

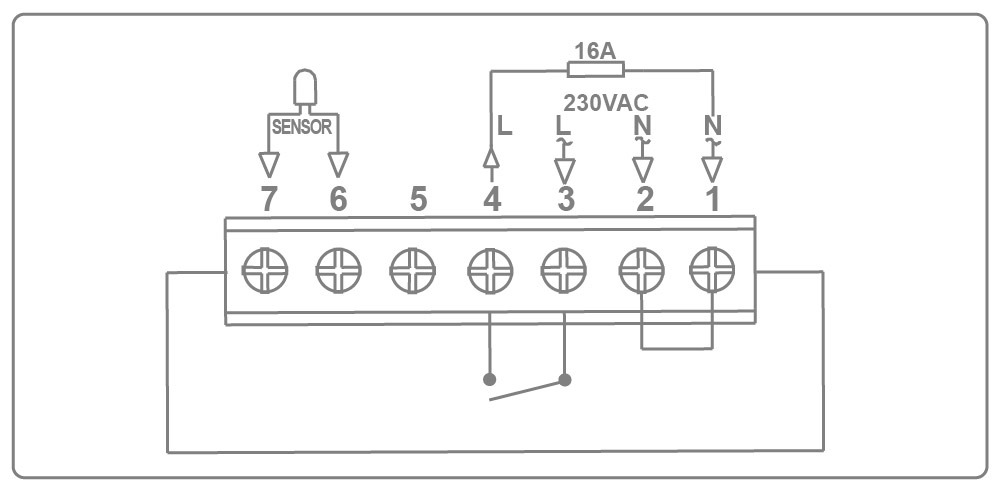

Wiring Diagram
This touch LCD thermostat provides 230V/16A output for electric floor heating system.
Installation
With flush mounted design, our digital clock thermostat required mounting box inside wall for installtion. It is suitable for all 86*86mm or diagmeter 60mm mounting box.
| Display | LCD display |
| Protocol | N/A |
| Power Supply | 230Vac，50/60Hz |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Backlight | White/Black |
| Sensor | NTC 10K |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP30 |
| Max Load | 16A |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| Housing | ABS to UL94-5 fire retardant plastic |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. E-TOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
This is an Elegant Glass Surface Underfloor Heating Thermostat. It has a elegant,sleeker design with a beautiful LCD screen ensuring an excellent user experience of temperature control. Environmental ABS material LCD Display Multiple modes control(Manual,Economy and PRG. Mode) Electric heating system (16A) 7 days Programmable (4periods/day) Clock display 86*86*16mm dimension Frost Guard CE, ROHS approved
