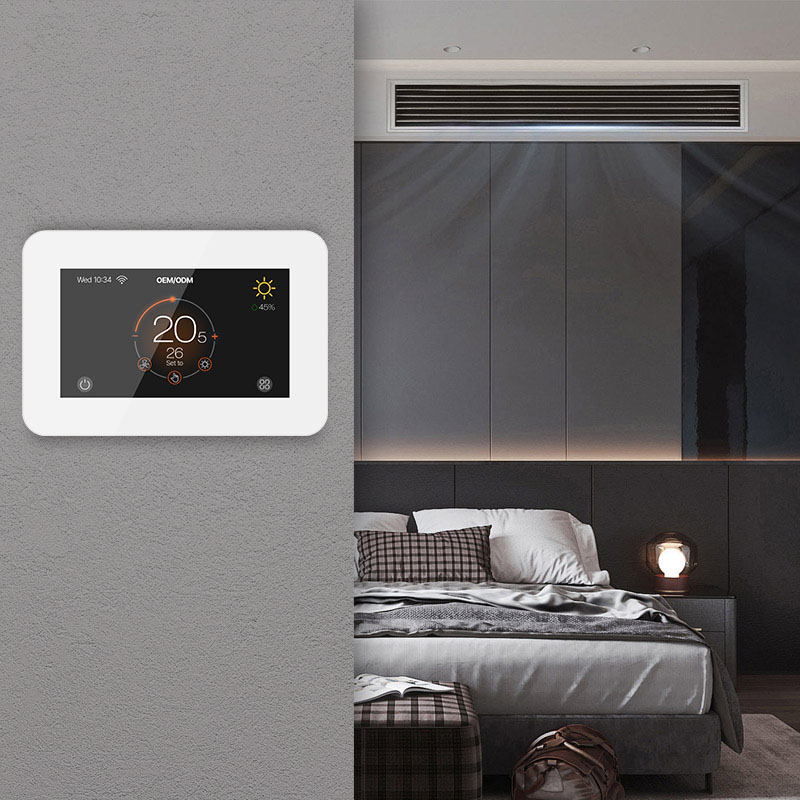

This KNX Smart Thermostat is a latest released E-Top KNX series product which are used in the smart home&BMS contribution. It's equipped with a 4.3" color screen interface with Max 9 pins of connector output. It can communicate with other smart home IOT devices with the KNX system such as light, switches..
By using the thermostat,whether you're at home or away, you can effortlessly adjust the temperature settings to ensure optimal comfort and energy efficiency.
Besides KNX, it's alse designed with RS485/Modbus connectivity, E-top RS485/Modbus thermostat can work with heat pump main controller. As different brand air to water heat pump use differnet modbus protocal, E-top controls can customized thermostat accordingly to provided modbus protocal.
| Display | Smart Underfloor Heatiang & Cooling Thermostat |
| WiFi Application | TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud) |
| WIFI | 2.4G( Don't support 5G) |
| Power Supply | 230Vac |
| Current | 3A for fan coil unit control |
| 3A NO, NC for thermal actuator control | |
| 3A for heat valve, cool valve control | |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Frost Protection Temp. | 5 ℃ ~15℃ |
| Floor Protection Temp. | N/A |
| Sensor Select | Internal sensor |
| Sensor Type | NTC β=3950 R25℃=10KΩ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | MAN/Holiday/PRG Mode |
| Programmability | 7 days 4 periods ( Customizable) |
| Window Open Detection | Yes |
| Child Lock | Yes |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X16.1mm |
| Materils | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM | 1. Customized logo and package |
| 2. Customzied software ( change to customer's user interface and control logic | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
Attractive and Big LCD Display KNX smart inerface with IOT devices Multiple modes control(Manual,Economy and PRG. Mode) Fan coil system or floor heating system Heat Mode & Cold Mode 3-speed fan control or EC fan control 7 days Programmable (4periods/day) RS485/Modbus ( ODM service) Clock display Frost protection Child Lock CE, ROHS, RED
Learn More
Attractive and Big LCD Display KNX smart inerface with IOT devices Multiple modes control(Manual,Economy and PRG. Mode) Fan coil system or floor heating system Heat Mode & Cold Mode 3-speed fan control or EC fan control 7 days Programmable (4periods/day) RS485/Modbus ( ODM service) Clock display Frost protection Child Lock CE, ROHS, RED
Learn More
