This is a wireless thermostat provide convenience to control heating system remotely for room temperature. Build-in sensors in your room wireless thermostat detects when the temperature falls to a chosen level and then feedback to the heating system to turn on. It's an easy use thermostats.
This is a wireless thermostat provides convenience to control heating system for room temperature. Build-in sensors in your room wireless thermostat detects when the temperature falls to a chosen level and then feedback to the heating system to turn on. Wireless thermostats are often more discreet as they don't need to be mounted to a wall and can be placed anywhere in your home. It is widely used in gas boiler heating or heat pump heating or cooling system.
Progarmmable wireless thermostat means you can program your housing temperature regular according to your own life schedule. Digital Programmable thermostat makes it convenient for your to set your schedule temperature once, and the thermostat can control the right temperature in the right time. Open window detect function help to stop heating system automatically if windows are opened to save energy.

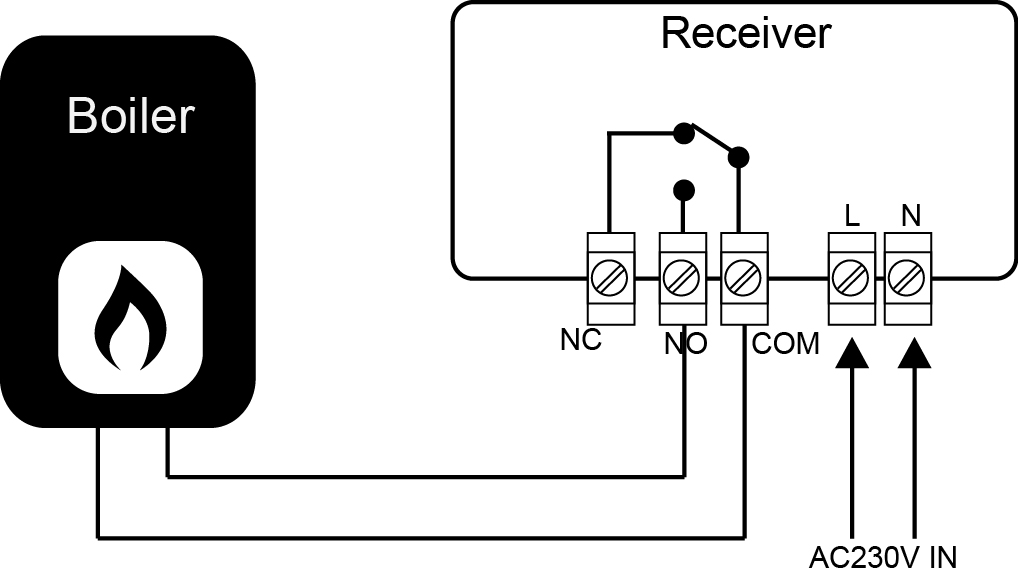

Wiring Diagram :
The receiver provide voltage-free output for heating sources control.

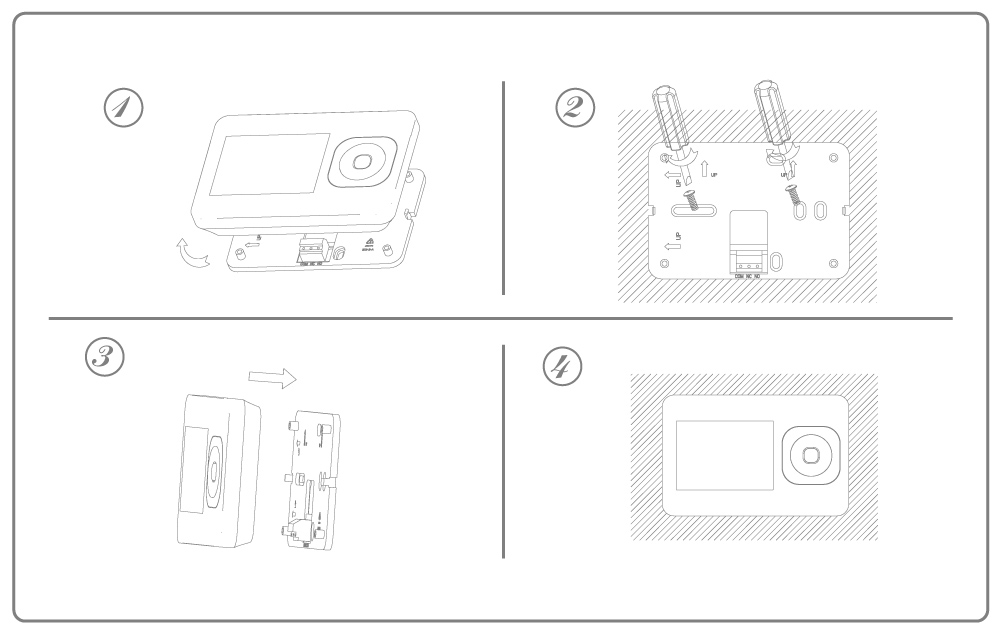

Installation :
Thermostat

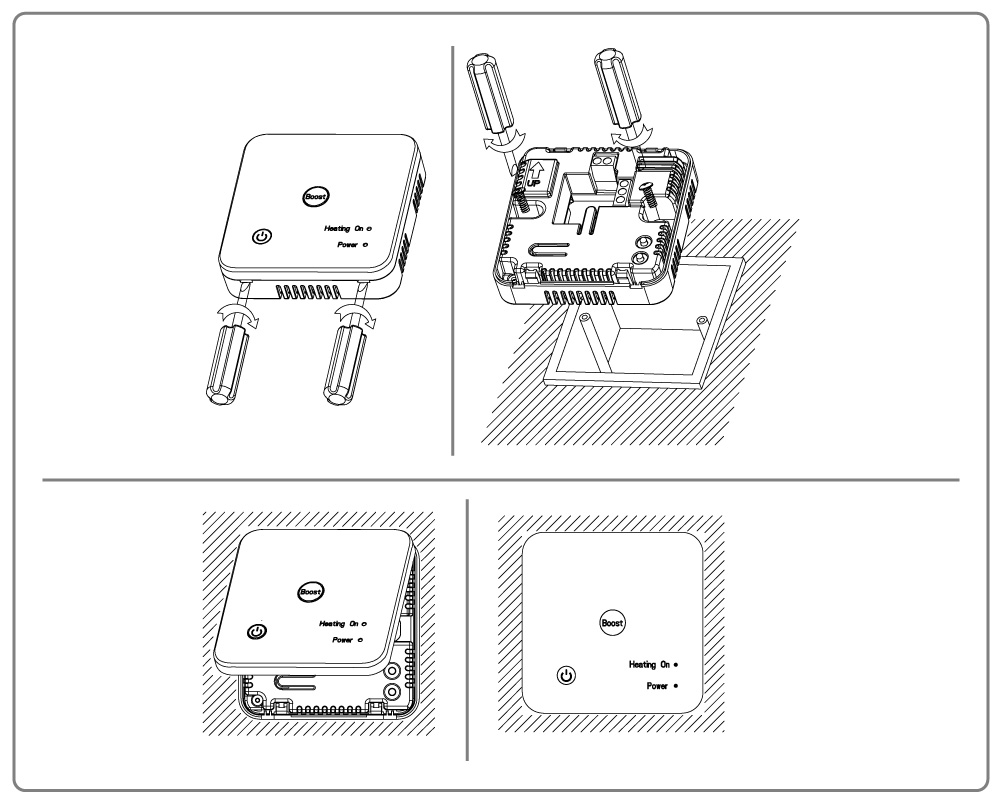

Receiver:
| Display | LCD Display |
| Power Supply | 2xAAA Battery |
| Receiver Max. Load | 10A |
| RF: | 433/868 MHz |
| Ambient Temp. | 0~50 ℃ |
| Operating Room Temp | 5-35 ℃ |
| Accurancy | ±0.5 ℃ |
| Programmability | 7 Days Programmable |
| Sensor | NTC10K |
| Protection Class | IP20 |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
