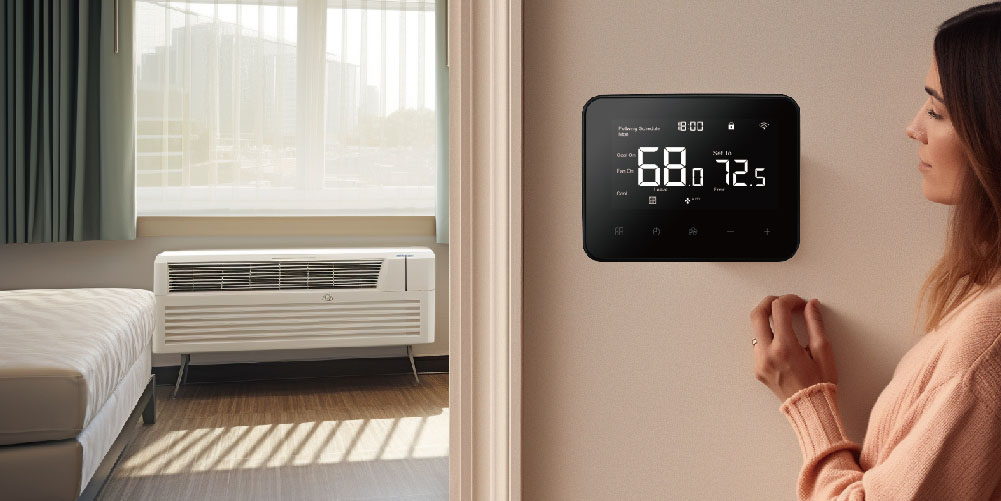

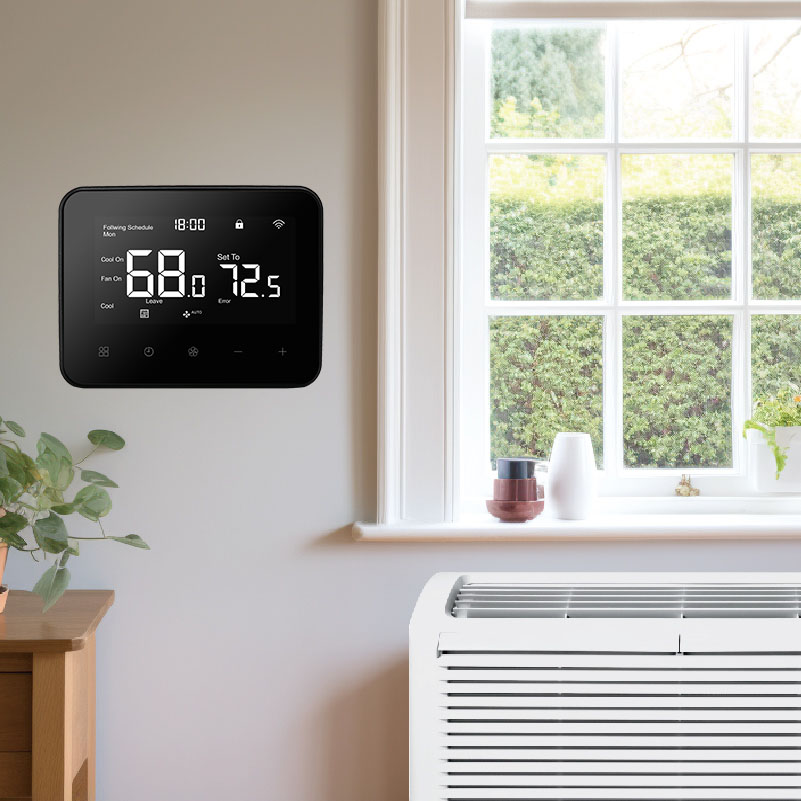

CH7400 Wireless Digital PTAC Thermostat and Base Module is a new energy saving solution for the hospitality industry and all other markets who use PTAC units. This weekly programmable PTAC thermostat designed to work on just about any PTAC brand. It comes complete with a wall mounted digital thermostat and base module which easily plugs into most late model PTAC units. It offers affordable comfort contol for any room. It features low and high speed fan controls and a large temperature and set point display with model negative touch screen. It can be used with either a heat strip or heat pump PTAC.
CH7400 Wireless WIFI PTAC Thermostat is smart remote room temperature controller. With wireless RF communication, one thermostat can control max. 8 modules installed in the PTAC units and heat pump system. Smart tuya wifi function enable users control temperature setpoint and heat cool ventilation mode by Android & IOS app.
Thermostat Application Guide
|
Description |
|
|
Gas or Oil Heat |
Yes |
|
Electric Furnace |
Yes |
|
Heat Pump (No Emergency Heat) |
Yes |
|
Heat Pump(With Emergency Heat) |
Yes |
|
Multi-Stage Systems |
Yes |
|
Heat Only Systems |
Yes |
|
Cool Only Systems |
Yes |
| Display | Touch LCD Screen |
| Protocol | WIFI, Zigbee |
| Thermostat Power | 2 x AA Battery Power or USB 5V/1A |
| Output Rating | 0.5 A each(Y,Y2,W/W2,G) |
| Receiver Power | 24VAC |
| Set Temp. Range |
41~ 95°F (5~35℃) |
| Load Rating | 1 amp per terminal, max 6 amp all terminal combined |
| Accurancy | ±1°F |
| Frequency | 868MHz |
| Programmability | 7 days 4 periods ( Customizable) |
| Protection Class | IP20 |
| Thermostat Dimension | 140X96X28.5mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
CH7400 Wireless Digital PTAC Thermostat and Base Module is a new energy saving solution for the hospitality industry and all other markets who use PTAC units. This weekly programmable PTAC thermostat designed to work on just about any PTAC brand. It comes complete with a wall mounted digital thermostat and base module which easily plugs into most late model PTAC units. It offers affordable comfort contol for any room. It features low and high speed fan controls and a large temperature and set point display with model negative touch screen. It can be used with either a heat strip or heat pump PTAC. Item No.: CH7400 A c-wire is required for all systems Works with two stages of heating and two stages of cooling (2H/2C) Works with Heat Only and Cool Only system Works with Heat Pump (With or Without Aux) Works with Amazon Alexa, Google Assistant Remotely control your home comfort from your smartphone Using the free mobile app for Android and iOS devices.
Learn More
CH7400 Wireless Digital PTAC Thermostat and Base Module is a new energy saving solution for the hospitality industry and all other markets who use PTAC units. This weekly programmable PTAC thermostat designed to work on just about any PTAC brand. It comes complete with a wall mounted digital thermostat and base module which easily plugs into most late model PTAC units. It offers affordable comfort contol for any room. It features low and high speed fan controls and a large temperature and set point display with model negative touch screen. It can be used with either a heat strip or heat pump PTAC. Item No.: CH7400 A c-wire is required for all systems Works with two stages of heating and two stages of cooling (2H/2C) Works with Heat Only and Cool Only system Works with Heat Pump (With or Without Aux) Works with Amazon Alexa, Google Assistant Remotely control your home comfort from your smartphone Using the free mobile app for Android and iOS devices.
Learn More
