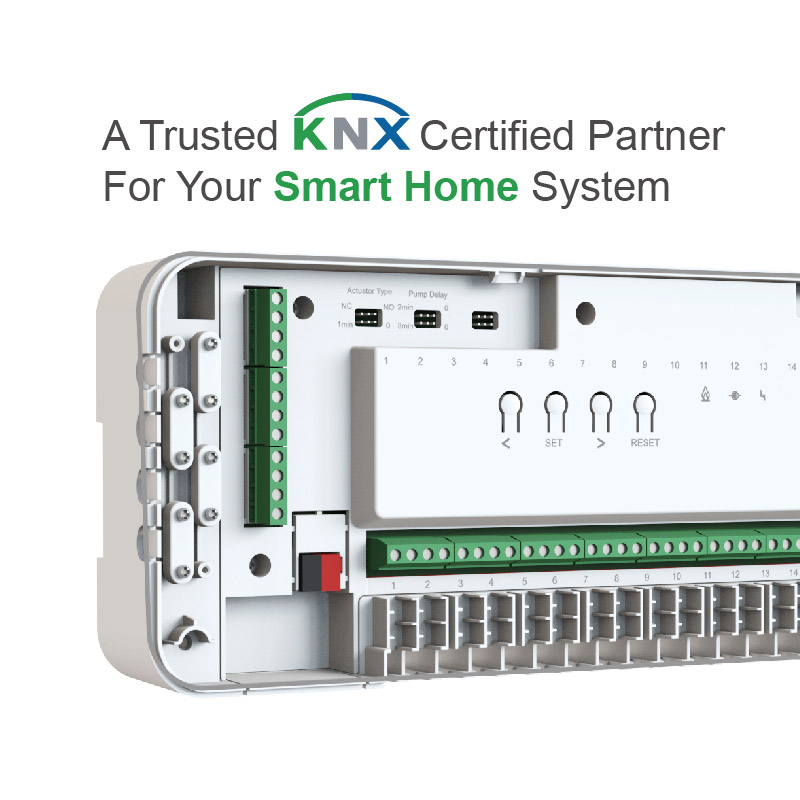

HR-02 underfloor heating KNX wiring centre is designed to be used in conjunction with KNX room thermostats for smart home automation control. 8 zones or 16 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.
E-Top underfloor heating KNX multizone wiring controllerfor HVAC applications in Home and Building installations (i.e. offices, hospitals, hotels, private houses, etc..). Using our 8/16 zones manifold wiring centre in your application means that the actuator, boiler and pump connections are wired from a single point. HR-02 is used in conjunction with any KNX room thermostat on market. 8 zones or 16 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.
| Name | KNX Multi-zone Wireless Wiring Centre for Underfloor Heating |
| Power Supply | 230Vac |
| Boiler Output | Voltage-free |
| Pump Output | 230Vac |
| Max. Current | 5(2) A for each |
| Frequency | N/A |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Protection Class | IP20 |
| Thermostat Dimension | 353.5mm x 118.4mm x 59.5mm. |
| Materils | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Size:
Installation:
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
HR-02 underfloor heating KNX wiring centre is designed to be used in conjunction with KNX room thermostats for smart home automation control. 8 zones or 16 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone. Item No.: HR-02 KNX connection Can work up to 16 KNX room thermostats Max. 16 thermal actuator connectors. Boiler and Pump delay time settable Din rail connection
