HT-CS08 is an elegant color touch WiFi thermostat for electric heating system control. It comes with external floor sensor, support max.16A electric heating elements.
Digital floor heating thermostat is a key temperature control component at smart home control systems. E-top as professional thermostat manufacturer, we are never forget to improve on thermostat control accurancy without reducing living comfort.

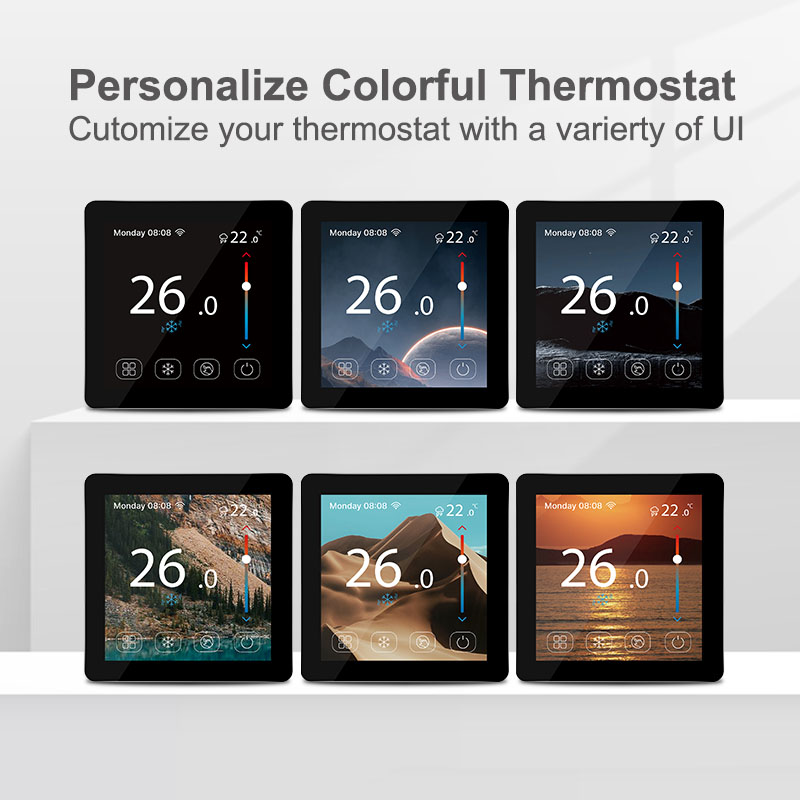

Compared to traditional digital LCD thermostats, the colorful wifi thermostat represents a further advancement. The touch-screen color display not only enhances the visual and tactile user experience but also serves as an attractive home decor feature. It effectively combines functionality with aesthetic appeal.
With touch screen operation, users can easily set and adjust the most suitable temperature with sliding temperature bar. This user interface exchange is fast and sensitive, similar as we did on smart phone. The high-quality display clearly shows all symbols, while the neutral, user-friendly interface ensures that anyone can quickly get started.
In addition, HT-CS8 app remote control smart programmable thermostat support by tuya cloud, it supports voice control and is compatible with Google Assistant and Amazon Alexa.
| Display | LCD display |
| Protocol | WIFI, Zigbee, Modbus,RS485, Bacnet |
| Power Supply | 230Vac，50/60Hz |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Backlight | White/Black |
| Sensor | NTC 10K |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Winter/Summer input |
| Protection Class | IP30 |
| Max Load | 3A |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| Housing | ABS to UL94-5 fire retardant plastic |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. E-TOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
