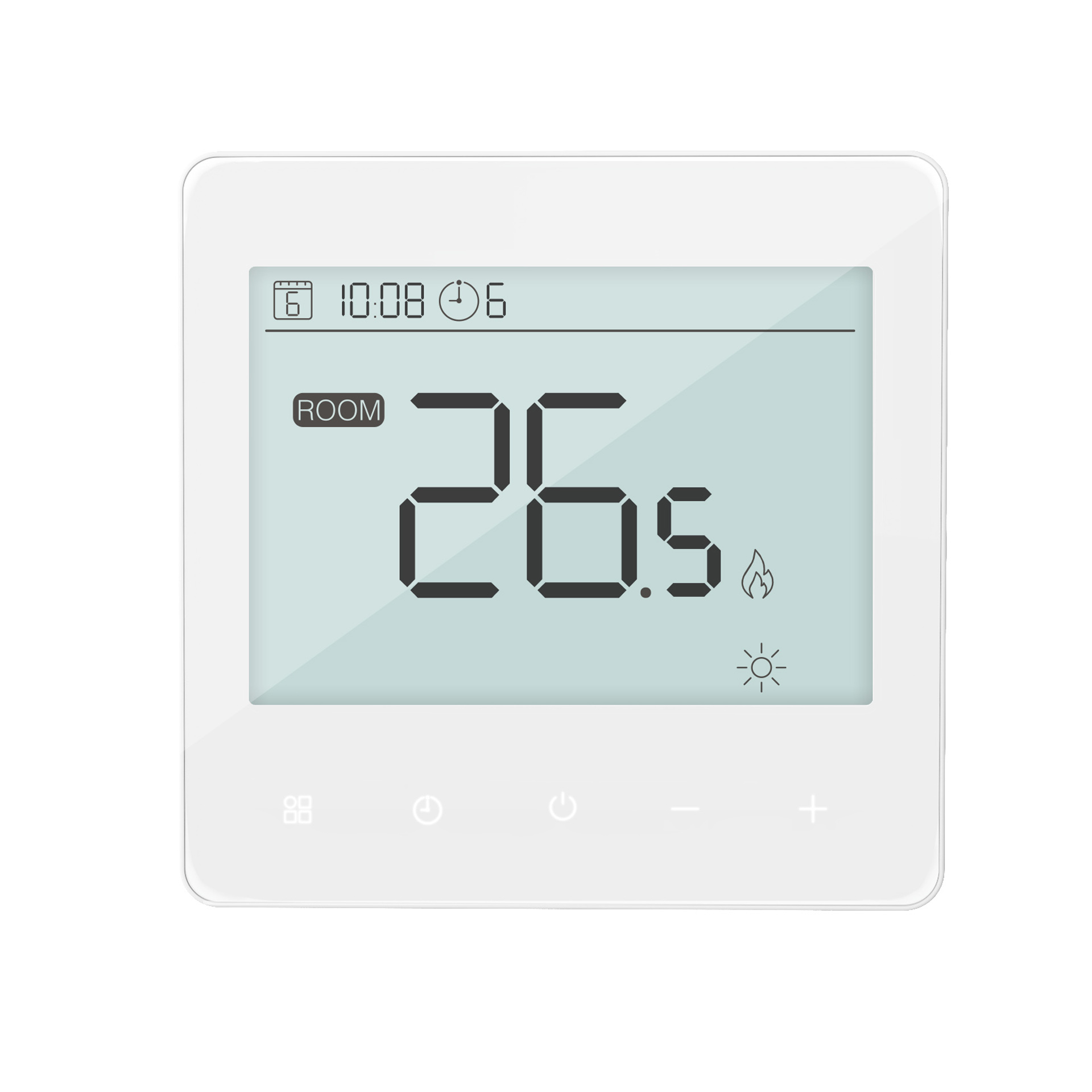

This programmable underfloor heating smart thermostat is a versatile and user-friendly device designed to control electric heating system. Featuring a sleek and responsive touchscreen interface, this intelligent touch screen LCD thermostat offers effortless temperature adjustments and remote control capabilities.
This Programmable Touch Smart Thermostat is a cutting-edge device that brings convenience and control to your underfloor heating system. Designed with a sleek touchscreen interface, this smart electric heater thermostat allows easy temperature adjustments.
Equipped with WiFi connectivity, this remote control heating thermostat enables users to remotely manage and control their underfloor heating system from anywhere using a smartphone, tablet, or other connected devices. Whether you're at home or away, you can effortlessly adjust the temperature settings to ensure optimal comfort and energy efficiency.
Designed to be compatible with electric underfloor heating system, this 16A 230Vac heating thermostat offers versatility for various heating methods. It seamlessly integrates into existing setups without the need for complex installation procedures.
The intuitive touchscreen interface provides a user-friendly experience, allowing you to easily set and customize your desired temperature with just a few taps. The vibrant display provides real-time feedback on temperature and system status for quick monitoring and adjustments.
Through its intelligent programming and built-in sensors, the Smart WiFi Electric Heating Thermostat optimizes energy usage by regulating the heat output based on current temperature conditions. This not only ensures a comfortable living environment but also helps reduce energy consumption and heating costs.

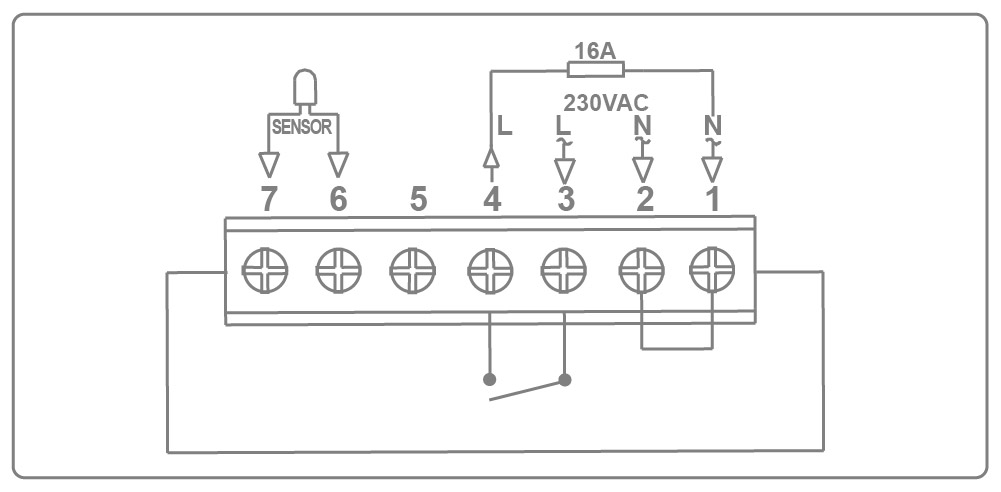

Wiring Diagram

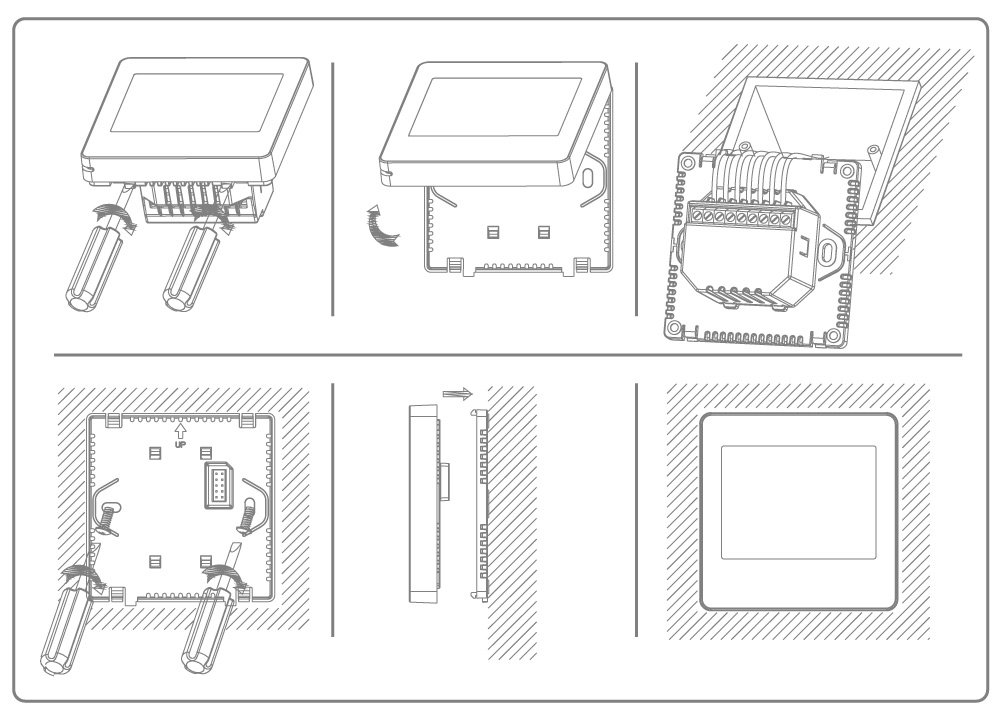

Installation
| Display | Smart Underfloor Heatiang & Cooling Thermostat |
| WiFi Application | TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud) |
| WIFI | 2.4G( Don't support 5G) |
| Power Supply | 230Vac |
| Current | 16A 230Vac output |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Frost Protection Temp. | 5 ℃ ~15℃ |
| Floor Protection Temp. | N/A |
| Sensor Select | Internal sensor & Exernal Sensor |
| Sensor Type | NTC β=3950 R25℃=10KΩ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | MAN/PRG Mode; |
| Programmability | 7 days 4 periods ( Customizable) |
| Window Open Detection | Yes |
| Child Lock | Yes |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X16.1mm |
| Materils | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM | 1. Customized logo and package |
| 2. Customzied software ( change to customer's user interface and control logic | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Dimension
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.

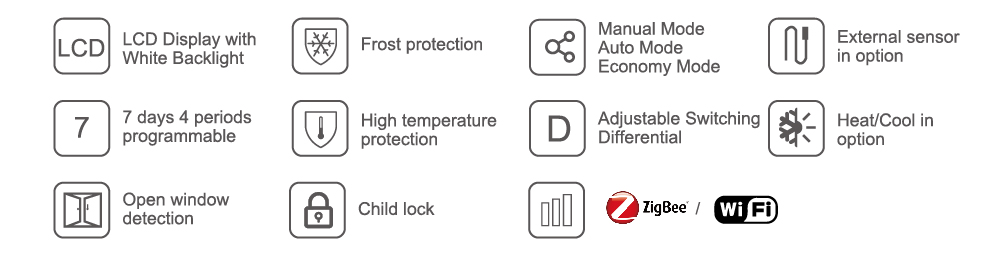

This programmable underfloor heating smart thermostat is a versatile and user-friendly device designed to control electric heating system. Featuring a sleek and responsive touchscreen interface, this intelligent touch screen LCD thermostat offers effortless temperature adjustments and remote control capabilities. Attractive and Large LCD Display WiFi Remote Control Multiple modes control(Manual & PRG. Mode) Electrc floor heating system (16A) Internal sensor & external sensor 7 days Programmable (4periods/day) Clock display High temp. protection Child Lock CE, ROHS, RED
